High accurate small tunnel size digital food metal detector
◆Mechanism exported from Germany, Dual-channel metal detection system. Coil with a rectangular aperture (no points).
◆Control system: ADLINE microprocessor controller.
◆Conveyors: Joint-body PU (polyurethane) Conveyor.
◆Combined with two-way signal detection circuit technology, liquid crystal display operations in English and visualization.
◆Has the adjustment function of products effect, such as moist products, products including sugar or salt, they all can make the machine has the signal of metal, which is actually has no metal, so it gets wrong information from the products and affect the detection result. So use this machine with this function can reduce the products’ effect to get better detection result.
◆With memory and learning function, can store 100kinds of product testing parameters, detecting a wide range of materials.
◆Completed by the digital signal processing circuit can detect all metal objects, adjusting the simple, stable and reliable.
◆The combination of DSP and microcontroller data items on the test sample and treatment to improve detection.
◆Special transport mechanism designed the maxi-Mize sensitivity of metal detectors.
◆Flexible modular design can be customized according to different requirements.
◆Mirror stainless steel with open transport system. Easy to clean .
◆Meet the requirements of IFS and HACCP certification. There are a variety of options excluded institutions depending on the application.
◆With superior shock interference.
| Model | VDF series | ||||||||
| Machine specification | Normal machine | Customized width | |||||||
| (mm)Detection Width | 400 | 300 customized | |||||||
| (mm)Detection Height | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Detection Sensitivity | Fe(Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Non-Fe(Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 | |
| 304Sus(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 | |
| Alarm and rejector system | Automatic stop by alarm and sound or push rod or falling drop | ||||||||
| Machine structure | Full structure takes of stainless 304 | ||||||||
| Machine size (mm) | L1520mm×W830mm×H1000mm if customized it will according to customized size | ||||||||
| Machine weight | Around 250KG if customized the weight will different | ||||||||
| Voltage and power | 220V 50Hz 90W | ||||||||
| Load ability | 5-25KG conveyor belt running speed: 25-30m/min or customized various | ||||||||
| Height from the earth | 650mm±50mm can customized | ||||||||
| Note: Normal size machine have stocks. Unnormal size machine have to customized | |||||||||

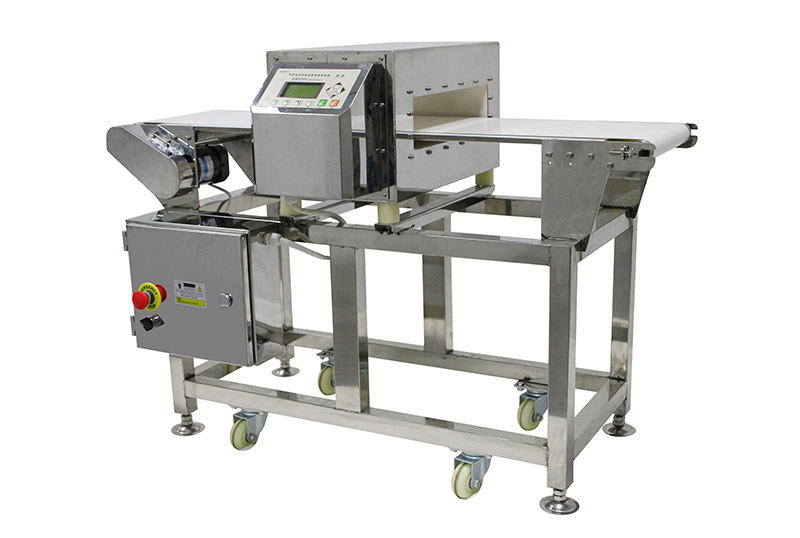

Real machine picture
Factory show room picture
Optional reject 1 :Push rod
Optional 2 flap drop
Optional 3 Air blast
