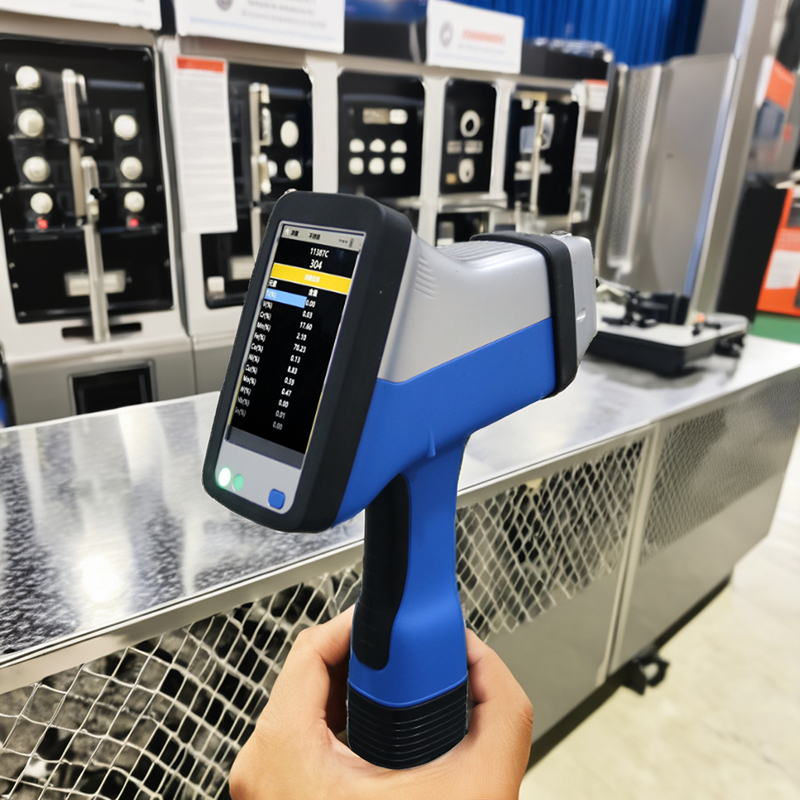

VDX-S2 Handheld Alloy Analyzer Advanced Non-destructive Testing for Alloy Identification

The VDX-S2 Handheld Alloy Analyzer is primarily designed for fast and non-destructive alloy identification and approximate alloy composition analysis, as well as metal identification and Positive Material Identification (PMI). It is suitable for a wide range of high and low-temperature alloy steels, stainless steels, tool steels, chromium/molybdenum steels, nickel alloys, cobalt alloys, nickel/cobalt heat-resistant alloys, and titanium alloys.

VDX-S2 Handheld Alloy Analyzer Advanced Non-destructive Testing for Alloy Identification

Main Features

· Wide Element Analysis Range: The VDX-S2 analyzer can detect 25 elements, including Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, W, Re, Pb, and Bi.

· High-Performance Detector: Equipped with a Si-PIN detector with an energy resolution of 149 ± 5eV and a detector window area of 25mm² (optional: detector protection device to prevent stabbing by sharp objects).

· Multiple Filters with Automatic Switching: At least 7 sets of filters with automatic switching functions.

· 5-Inch High-Definition Touchscreen: Integrated with the host, non-embedded PDA or tablet computer, and auto-dimming function.

· High-Performance Processor: Quad-core processor with a main frequency of at least 1.4GHz and 4G memory.

· Large Storage Capacity: Built-in 64G memory, capable of storing more than 50,000 sets of data and maps.

· Built-in GPS: Supports GPS positioning.

· Multiple Data Transmission Methods: Built-in WiFi, Bluetooth, and USB3.0 ports.

· High-Resolution Camera: Built-in high-resolution camera for photographing and locating samples.

· High-Capacity Battery: 6800mAh lithium battery, capable of continuous operation for more than 8 hours.

· Atmospheric Pressure Compensation: Built-in barometric measurement module for system compensation and correction.

· Excellent Heat Dissipation Performance: Metal housing heat sink passive heat dissipation and built-in fan active heat dissipation system to ensure continuous and stable operation in a 50°C environment.

· Industrial-Grade Operating System: Uses an industrial-grade Win-IOT operating system.

· Air Test Protection Design: Prevents misoperation without a target.

· Remote Upgrade Support: Supports cloud server remote upgrades, manufacturer remote technical support, and fault diagnosis.

· Robust Protective Case: Compliant with IP54 standards, providing excellent water and dust resistance, as well as shock protection, and can be used as an emergency tool.

Product Specifications

· Excitation Source: 50KV/200uA, Ag target, end-window integrated micro X-ray tube and high-voltage power supply, with a matching power of 4W.

· Detector: Si-PIN detector with an energy resolution of 149 ± 5eV and a detector window area of 25mm² (optional: detector protection device).

· Quasi-Value Filter: At least 7 sets of filters with automatic switching functions.

· Display Screen: 5-inch LCD touch screen, integrated with the host, non-embedded PDA or tablet computer, and auto-dimming function.

· Processor: Quad-core processor with a main frequency of at least 1.4GHz and 4G memory.

· Memorizer: Built-in 64G memory, capable of storing more than 50,000 sets of data and maps.

· GPS: Built-in GPS.

· Data Transmission: Built-in WiFi, Bluetooth, and USB3.0 ports.

· Camera: Built-in high-resolution camera for photographing and locating samples.

· Battery: 6800mAh lithium battery, capable of continuous operation for more than 8 hours.

· Atmospheric Pressure Compensation: Built-in barometric measurement module for system compensation and correction.

· Heat Dissipation Performance: Metal housing heat sink passive heat dissipation and built-in fan active heat dissipation system to ensure continuous and stable operation in a 50°C environment.

· Operating System: Industrial-grade Win-IOT OS.

· Security Guard: Air test protection design to prevent misoperation without a target.

· Remote Upgrade: Supports cloud server remote upgrades, manufacturer remote technical support, and fault diagnosis.

· Size: 250 x320 x80mm.

· Weight: 1.9kg.

· Work Environment: Ambient temperature -10°C to +50°C, relative humidity 10% to 90%.

Additional Information

· Analytical Model:

o Alloy Analysis Mode: Integrated with:

§ Automatic identification of alloy brand numbers.

§ Small point analysis with a 1mm small sample compensation.

§ Qualified testing mode for alloy materials.

· Automatic Statistics: Maximum, minimum, standard deviation, etc.

· Portable Printing: Supports a universal Bluetooth printer to generate a predefined format report.

· Data Export: Supports multiple export formats, such as EXCEL, BMP, PDF, CSV, etc. Also supports WiFi, Bluetooth wireless data transmission, and USB, U-disk data transmission.

· Battery Safety: The battery meets UN38.3 standards and has a certificate.

· Radiation Safety: The radiation dose test results meet the Health Protection Standard for X-ray Diffractor and Fluorescent Analyzer (GBZ 115-2002) and the Basic Standards for Ionizing Radiation Protection and Radiation Safety (GB18871-2002).

· Industrial Grade: Compliant with IP54 standards.

· Quality Certification: The product has passed CE certification.
