IXL-GWS-S-8R
Checkweigher IXL Series
Suitable for weight checking for packaged products , to ensure quality standards
●High speed , high sensitivity, high stability dynamic weight checking
●Easy to clean , simple to disassemble
Product Features
User-friendly Function
●Multi languages
●Data storage
●Large memory capacity
High Configuration
●Touch screen
●USB Port,Ethernet function
●Real time monitoring on PC
Brief User Parameter Setting

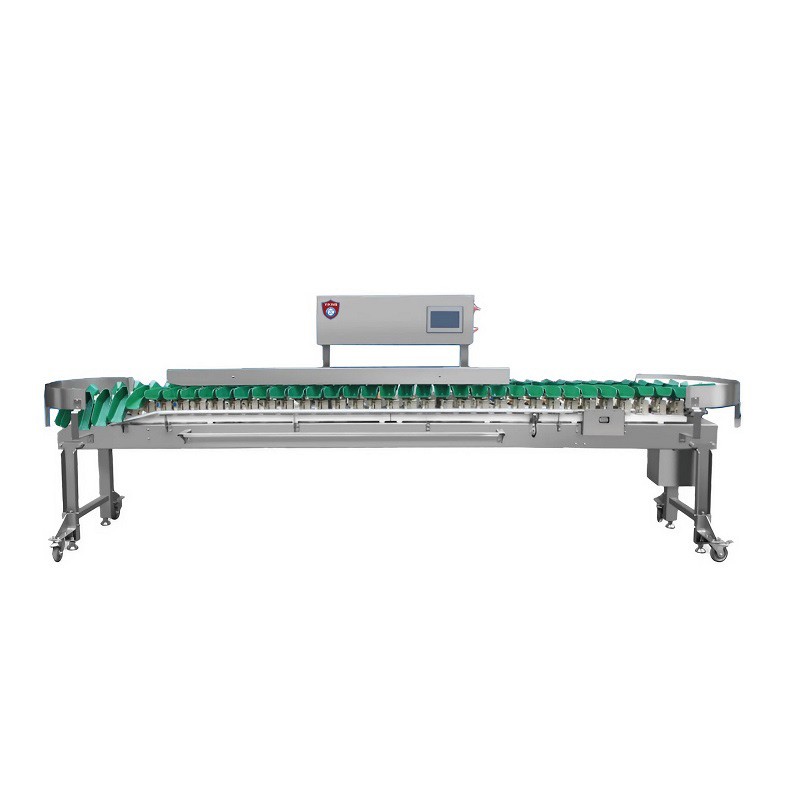

Multi-trayweight sorting Machine
The dynamic weight sorting equipment is a device which sorts the products automatically with a high speed and a high accuracy according to their weights ranged by the user's requirements. cumulative weight and quantity are optional functions.
Product Specifications
Model | IXL-GWS-S-8R | IXL-GWS-S-16R | IXL-GWM-S-8R | IXL-GWM-S-16R | IXL-GWL-S-8R | IXL-GWL-S-12R | |
Weight Range (Note 1) | ≤8 | ≤16 | ≤8 | ≤16 | ≤8 | ≤16 | |
Accuracy (Note 2) | ±0.5g | ±1g | ±2g | ||||
Maximum Speed | ≤300PPM | ≤280PPM | ≤260PPM | ||||
Detecting Range | 2 to 500g | 2 to 3000g | |||||
Power Consumption | AC220V, 0.75KW | ||||||
Main Material | stainless steel (sus304) & food grade resin | ||||||
Machine Size | L | 3800mm | 4200mm | 4500mm | |||
w | 800mm | 800mm | 800mm | ||||
H | 1500mm | 1500mm | 1500mm | ||||
Operation Height | 800mm to 950mm (can be customized) | ||||||
Machine weight | 280kg | 350kg | 290kg | 360kg | 350kg | 45kg | |
IP Rate | IP66 | ||||||
Suitable Products | wing, thigh, leg meat, sea cucumber, abalone, shrimp, fish, etc. | Thigh, breast, upper leg meat, melon and fruit, etc. | Large chunk of meat, fish, etc. | ||||
Scale Quantity | 1 scale platform | ||||||

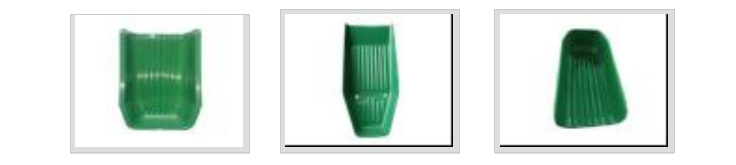

Tray sizes | L | 170mm,190mm, 220mm | 260mm | 300mm | |||
W | 95mm | 130mm | 150mm | ||||
Note:
1. other weight ranges can be customized (but can't over the max weight range)
2. The weighing accuracies are variables, which are depended on the product characters, shape, quality, detecting speed and size.
Product Configuration
