IMD-L
The first DSP metal detector with Intellectual Property Rights in China, suitable for metal contaminants
detection in various industries like: aquatic products, meat & poultry, salted products, pastry, nuts, vegetables,
chemical raw materials, pharmacy, cosmetics, toys, etc.
Metal Detector IMD Series
Detecting all metal contaminants in packaged and non-packaged food, including ferrous metal (Fe),
non-ferous metals (copper, Aluminum etc.) and stainless steel.

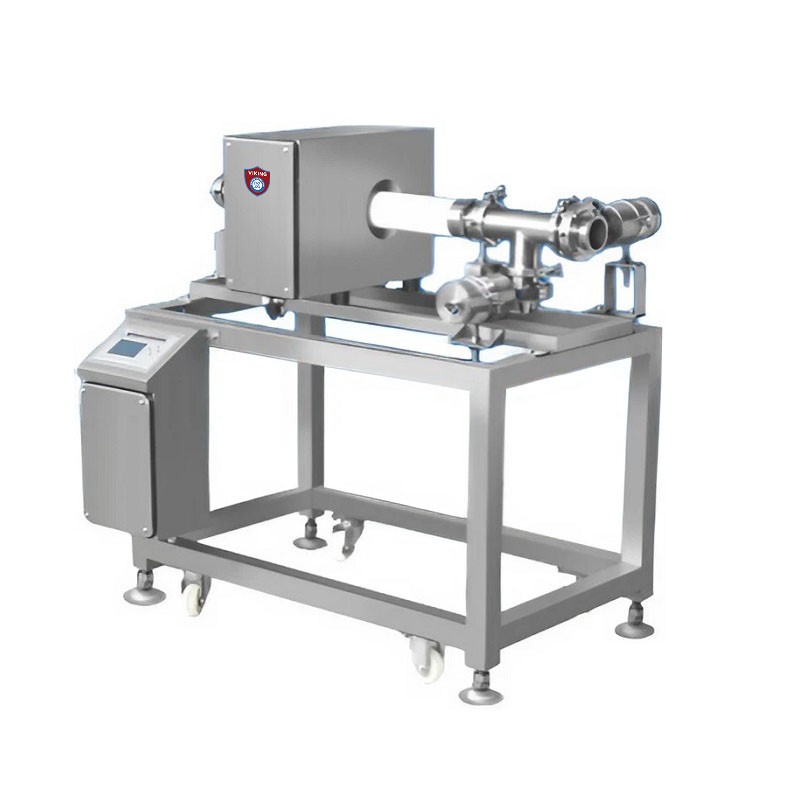

Metal Detector for sauce
Easy to be integrated in existing sealed pipe system, this type of metal detector is suitable for the pump pressure fluid and semi-fluid product like sauce, liquid, etc.
Product Features
Stable and High Sensitivity
●Special phase adjusting technology
●High sensitivity with stable perf rmance
●Auto balance function
High Configuration
●Touch screen
●USB Port
●Dual-frequency
●Customized re ecter system
●Different surface treatment
User-friendly Function
●Multi languages
●Customization
●Large memory capacity
Auto-learning Function
●Auto-learning product character
●Finish auto-learning process very soon
Product Specifications
Model | IMD-L | ||||||
Detection Diameter (mm) | Rejecter Mode | pressure Requirement | power supply | Main Material | Inner pipe Material | Sensitivity Φd (mm) | |
Fe | SUS | ||||||
50 | Automatic valve rejecter | ≥0. 5Mpa | AC220V (optional) | Stainless steel | Food grade Teflon tube | 0.5 | 1.2 |
63 | 0.6 | 1.5 | |||||
80 | SUS304 | 0.7 | 1.5 | ||||
Note:
1. The technical parameter above namely is the result of sensitivity by detecting only the test sample inside the pipe. The sensitivity would be affected according to the products
being detected and working condition.
2. Detecting volume per hour is related with product weight and speed ·
3. Requirements for different sizes by customers can be fulfilled.
Product Configuration
