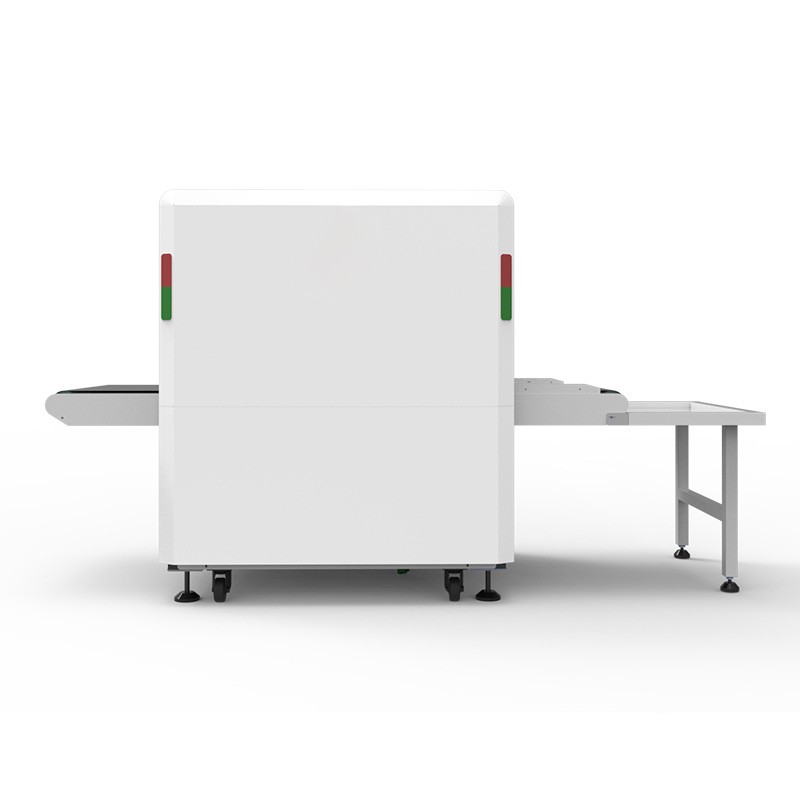

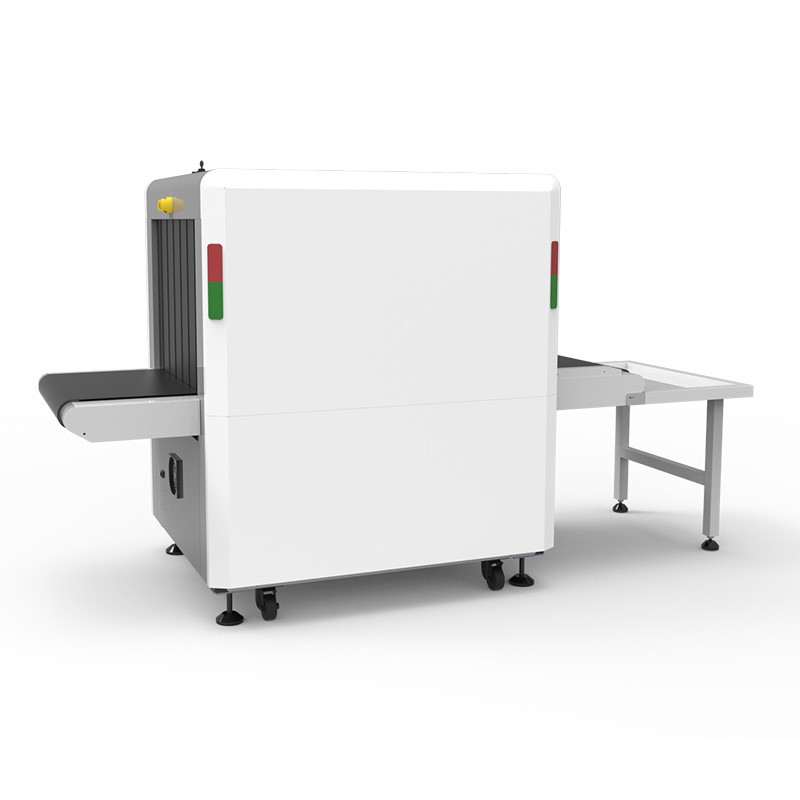

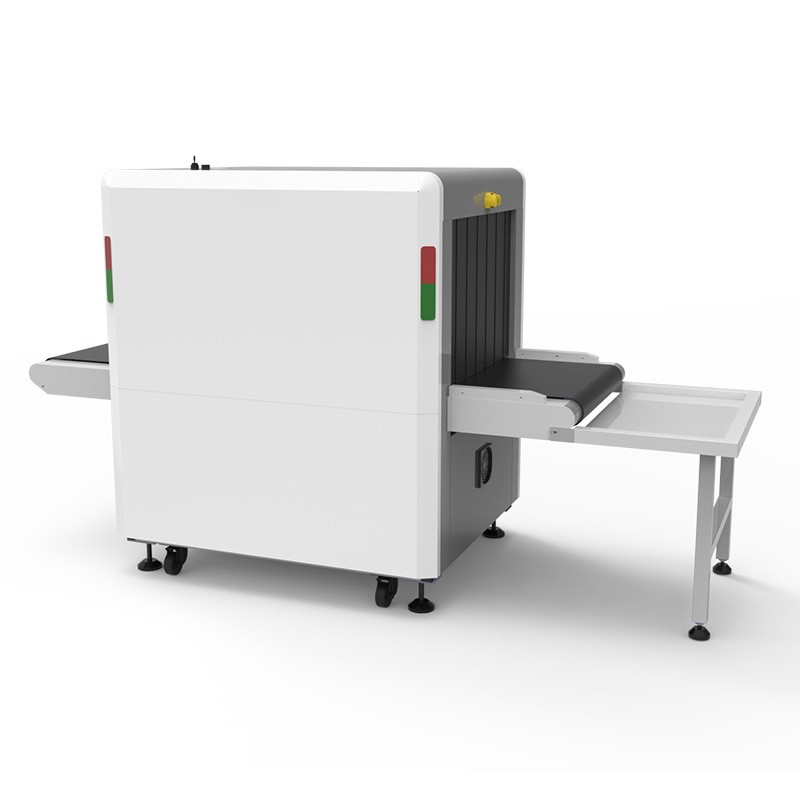

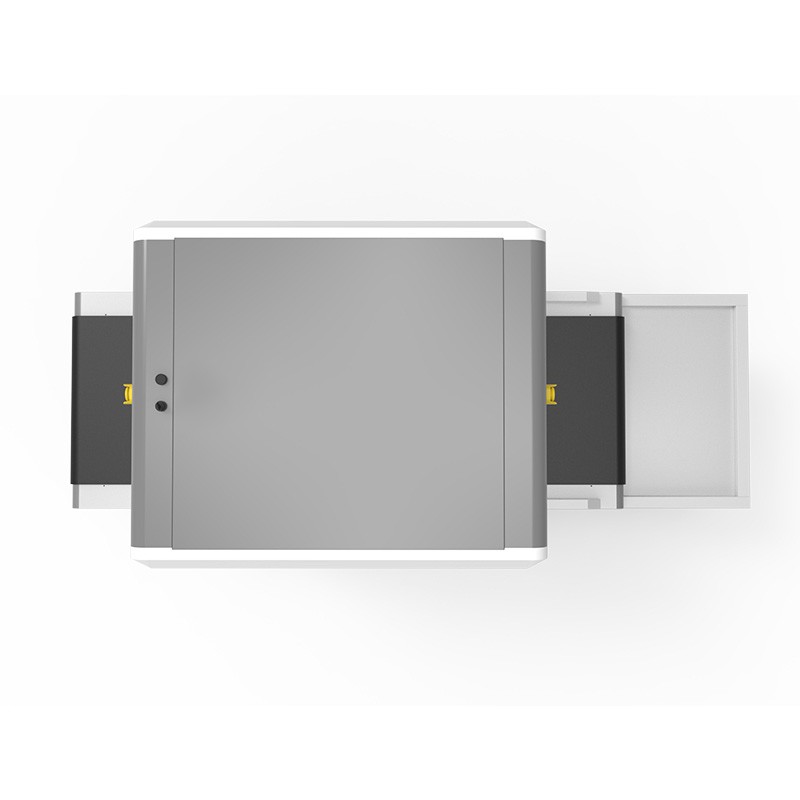

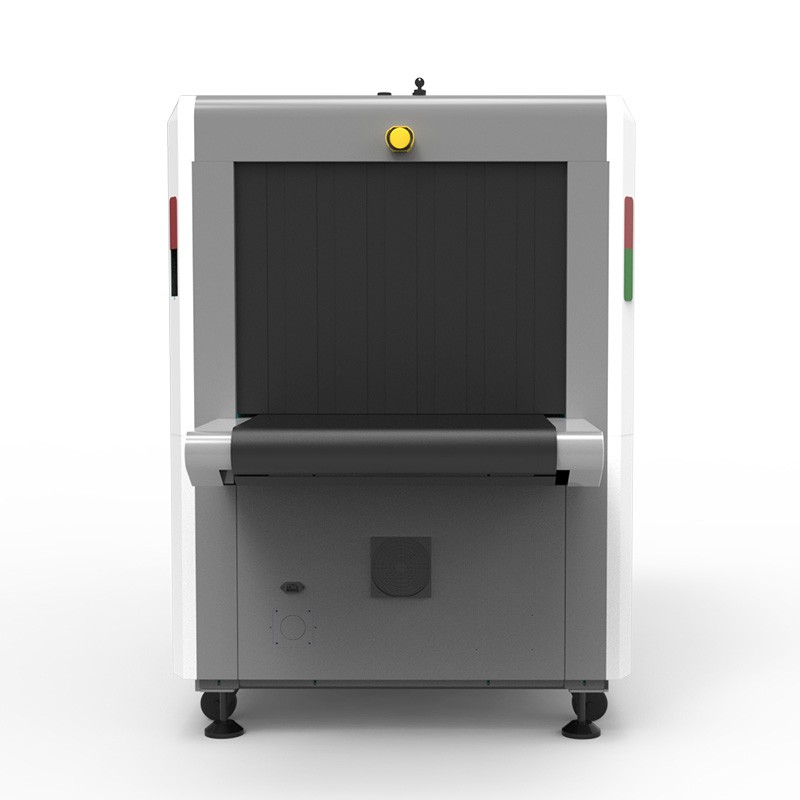

X ray Baggage and Parcel Inspection Scanner
This product of our company is one kind of advanced X-ray baggage inspection system that is designed to inspect baggage with explosives in them. The machine will scan the air and automatically shutdown if there is luggage on it, And it also can be set to operate manually. It has many specialties: the mainframe is made of high intensity steel castings with excellent rigidity, light weight aluminum alloy shell; Fully sealed inside the cabin no matter which door was opened or closed and at what position,it still maintain a good environment for operation ,even if there's leakage of liquid . In addition ,its operating temperature range is -20℃ to 50 ℃.
Our x-ray scanner is the most advanced and efficient airport security screening equipment. We are a leading supplier, and our product is used by many airports in China. For more information, you can contact us directly or check the experience of our customers .
The equipment has passed the national security standard, as well as the German safety certification. The X-ray machines have been widely used at airports, ports, railway stations and border checkpoints to inspect luggage and cargo
Advantages
1. With equipment to save electricity
2. Famous brand spare parts:
(1). Spellman brand generator from the USA
(2). Hamamatsu brand detector from Japan
(3). Interroll brand Roller from German
3. Protective cover on lead curtain to avoid lead pollution
4. Sound and light alarm
5. Local network supported
Features
● Global leading parameters: the inspection report issued by the Ministry of Public Security, shows that each parameter is ahead of other products, more details in the inspection report.
● Energy-saving design: The machine can sense objects automatically,if there is luggage on the machine will be operating, if there is no luggage,it'll be quiet. (Optional)
● A key shutdown control: simply rotate the key when clicking shutdown,safe shutdown automaticly ,reduce equipment failure.
● Environmental-friendly Design: lead shade with protective film, prevent lead from hand contact, avoid lead pollution.
● Dynamic screen switching: when it is stationary screen it can be switched and when it is dynamic it also can switch freely.
Product Certification
● Strict quality internal control , double-check principles of engineering and production
● Safeguard measures for machine parts
● Through the testing by Ministry of public security and police use electronic product quality testing center
● Through the EU CE certification
● Through the ISO9001 quality management system certification
● Through the ISO14001 environmental management system certification
● Through the GB/T28001 occupation health and safety management system certification
● Through thes provincial Environmental Protection Department of radiation safety certification
● Through the provincial occupation health inspection center detection of radiation
● Through the the people's Republic of China State Bureau of copyright of computer software copyright registration certificate
● Double soft certification
Applications
This is a security apparatus for small and medium channel size, mainly for underground venues such as security services, and security design of small parcels in Logistics Center,in recent years, rail security become more and more perfect , equipped with almost all of this model.
X-ray Generator | |
Ray Beam direction | Bottom-illuminated |
Operation cycle | 100% , without preheating |
X-ray Generator cooling | Sealed oil cooling |
Ray beam divergence angle | 80° |
X-ray transition arranges | L-shaped linear detector array, more power |
Image Processing System | |
X-ray sensor | L-shaped photodiode array detector (single energy), 12bit depth |
Monitor | high resolution 17 inch LCD monitor |
Color image display | 24-bit true color display |
Console | full package sealed display, connecting cables can be adjusted according to the requirements |
Edge Enhancement | the outline of objects will be more clear |
Super Image Enhancement | the details of the image are more clear |
High penetration display | improve image contrast in bright areas, so the easy penetrating area will be more clear |
Low penetration display | improve image contrast in dark areas, so the difficult penetrating area will be more clear |
Magnifier | local amplification function |
Brighten / darken | Increase/ decrease image brightness |
Image pull back / front pull | Show the top 20 images, and the current image can be any image processing |
Image Restoration | Restored to its original state |
Image Storage | Save any image in real time, and can store more than 100,000 images and be processed arbitrarily, continuous work to save. |
Safety requirements for food, medicines and tape | multiple exposure does no effect |
Film safety | ISO1600 film safety |
Environment | |
Operating temperature / humidity | 0℃~45℃/20%~95% (no condensing) |
Storage temperature / humidity | -20℃~60℃/20%~95% (no condensing) |
Voltage | 220VAC(±10%) 50±3Hz |
Power consumption | 1.0KW(max) |
Noise level | ≤55dB (A) |
Technical standards | Technical parameters |
By size | 650(W)×500(H)mm |
Conveyor speed | 0.22m/s |
Load | 170 kg |
Resolution | ∮0.0787 mm |
Penetration | ≥40 mm steel plate |
Through resolution | 0.202mm |
Spatial resolution | Horizontal diameter ≤1.0mm,Vertical diameter ≤1.0mm |
Conveyor height from the ground | 620mm |
Monitor | BenQ 17in LCD Monitor |
Storage | 500G hard drive to save any image in real time, can store more than 100,000 and can make any image processing, and continuous work to save. |
Noise | ≤ 55dB(A) |
Operating system | windowsXP |
Single check dose | One-time inspection of the X-ray light source irradiation amount ≤ 1.22µGy |
Leaking radiation dose rate | Away from any device outer surface of 5cm, the ray irradiation leak rate should be < 0.12µGy/H |
