VK-SE100100 X-ray Baggage Scanner High-Performance Security Inspection

The VK-SE100100 X-ray baggage scanner operates on the principle of X-ray penetration and is a high-performance security inspection device widely applied in the field of national security. It is suitable for use at national research institutions, testing centers, courts, prisons, procuratorates, airports, subways and railway stations, docks, schools, embassies, tourist attractions, logistics centers, large events, and other venues. This equipment has become the preferred solution in the security inspection field due to its outstanding detection capabilities and reliability.

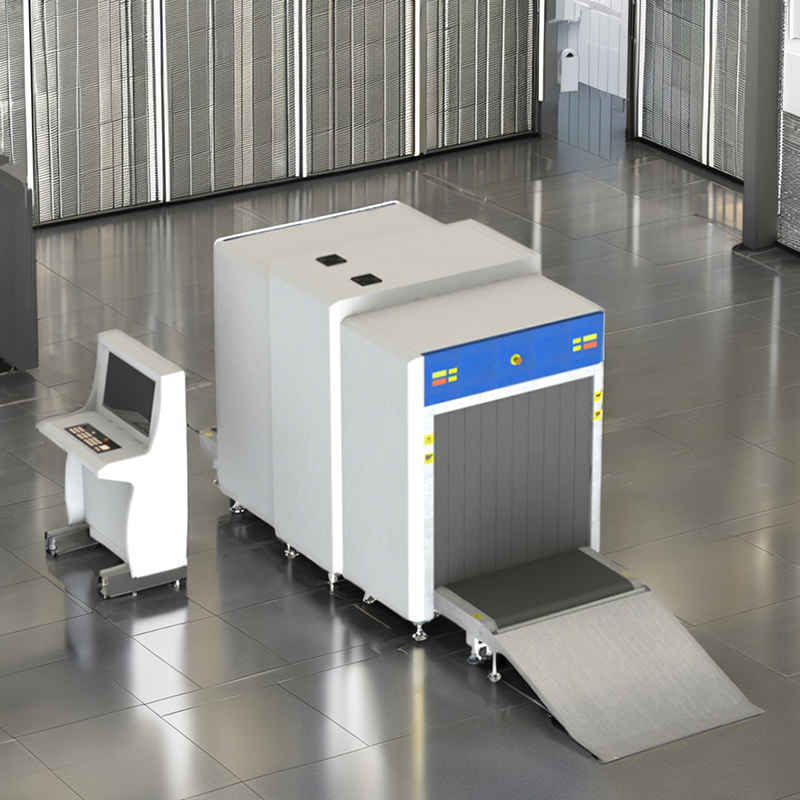

VK-SE100100 X-ray Baggage Scanner High-Performance Security Inspection for National Security

Main Features

· Efficient Inspection: Utilizes advanced X-ray technology to quickly and accurately identify dangerous items, ensuring public safety.

· Powerful Image Processing Capabilities: Supports color/black-and-white, organic/inorganic material differentiation, super enhancement, edge enhancement, partial enhancement, grayscale scanning, image restoration, zooming, high-low energy penetration, continuous observation, image playback (50 images), image storage (over 100,000 images), and other image processing functions.

· Intelligent Functions: Equipped with an automatic self-diagnostic system that can automatically detect the device's status and report abnormalities; includes high-density alarm, drug, and explosive powder detection features to further improve detection accuracy.

· Ergonomic Design: The reading system follows ergonomic principles, making operation simple and comfortable, reducing operator fatigue.

· Radiation Protection: Employs a radiation protection system close to natural background levels, ensuring safety during use.

· Energy-saving and Environmentally Friendly: Power consumption is only 0.8 kVA, meeting environmental and energy-saving requirements.

· High-quality Components: Uses electrical components from international brands, industrial-grade PLC circuit control, and electromagnetic compatibility reaching high-standard requirements.

· Easy Maintenance: Features one-button shutdown, facilitating daily management and maintenance.

Product Specifications

· Dimensions: 3450mm (L) × 1365mm (W) × 1744mm (H)

· Tunnel Size: 1005mm (W) × 1005mm (H)

· Conveyor Belt Speed: 0.20-0.22 m/s

· Conveyor Belt Height: 304mm

· Weight: 771kg

· Storage Temperature/Humidity: -40°C ± 3°C ~ +60°C ± 2°C / 5% ~ 95% (non-condensing)

· Operating Temperature/Humidity: 0°C ± 3°C ~ +40°C ± 2°C / 5% ~ 95% (non-condensing)

· Power Supply: AC220V (-10% to +10%), 50Hz ± 3Hz

· Power Consumption: 0.8 kVA

Basic Performance

· Penetrating Power: 30mm steel plate (140kV), 34mm steel plate (160kV)

· Line Resolution: 40AWG

· Penetrating Resolution: 32AWG

· Spatial Resolution: Horizontal Ф1.0mm, Vertical Ф1.0mm

X-ray Generator

· Generation Direction: Top-to-Bottom

· Tube Voltage: 140~160kV adjustable

· Tube Current: 0.4~1.2mA adjustable

· Cooling Method/Load Cycle: Sealed oil/100%

· Generation Angle: 80°
