CT Imaging Baggage Inspection x ray machine
Revolutionizing Security with CT X-ray Baggage Scanner**
Our CT X-ray Baggage Scanner stands at the forefront of security technology, bringing about a paradigm shift in how we approach baggage screening. This cutting-edge solution is not just a scanner; it's a comprehensive security system designed to meet the evolving challenges of today's security landscape.
Advanced Imaging for Precise Threat Detection**
At the core of our CT X-ray Baggage Scanner is a state-of-the-art imaging system that utilizes Computed Tomography (CT) technology. This advanced imaging capability provides unparalleled precision in threat detection. The scanner goes beyond traditional X-ray systems, offering high-resolution visuals and a detailed, multi-dimensional view of scanned baggage. This level of sophistication ensures that security personnel can identify potential threats with exceptional accuracy.
Dual-Energy Technology for Enhanced Screening Accuracy**
One of the standout features of our scanner is its dual-energy technology. By leveraging dual-energy X-ray capabilities, the system can differentiate materials based on their atomic composition. This not only enhances screening accuracy but also enables security personnel to identify concealed threats more effectively. The dual-energy technology adds a layer of sophistication to baggage screening, making it a powerful tool in the fight against evolving security challenges.
Automated Threat Recognition (ATR) for Efficiency**
Efficiency is a key consideration in security operations, and our CT X-ray Baggage Scanner excels in this regard. Equipped with Automated Threat Recognition (ATR) technology, the system automates the detection process, flagging potential threats without the need for manual inspection. This not only streamlines the screening process but also ensures a rapid response to potential security risks, enhancing overall operational efficiency.
3D Baggage Imaging for Comprehensive Inspection**
Comprehensive inspection is essential for robust security, and our scanner incorporates 3D baggage imaging to achieve just that. This technology provides security personnel with a three-dimensional view of scanned items, offering a more thorough understanding of their contents. This level of detail is crucial in identifying irregularities or potential threats that might be concealed within baggage.
Explosive Detection System (EDS) for Aviation Security**
Aviation security demands the highest level of scrutiny, and our CT X-ray Baggage Scanner meets this demand with an integrated Explosive Detection System (EDS). This specialized feature enhances the capability to identify explosive materials, providing an added layer of security for airports and aviation facilities. The scanner is designed to meet and exceed the stringent standards set by aviation regulatory bodies.
In conclusion, our CT X-ray Baggage Scanner is not just a security device – it's a comprehensive solution that brings together advanced imaging, dual-energy technology, automated threat recognition, 3D baggage imaging, and an Explosive Detection System. Elevate your security protocols with a system that is designed to meet the challenges of today and tomorrow, ensuring precision, efficiency, and the highest level of threat detection.
VTS1000E is a multi-functional fast CT luggage / object inspection system independently developed by DONGGUAN VIKING ELECTRONIC TECHNOLOGY CO., LTD. The system has an independent DR detection and CT detection system, which can obtain three-dimensional color image, DR image and CT slice image. With an advanced spiral cone beam scanning and dual energy CT imaging technology, the system can obtain multi-dimensional material attribute information such as density, equivalent atomic number and so on, and can automatically detect a variety of prohibited items such as explosives and drugs.
As an optional function, the product creatively integrates the radiation detection, dangerous chemical gas detection and other functional modules, which can detect the radioactive substances and volatile dangerous chemicals that are difficult to detect in the CT system with high speed and accuracy, play an important complementary role in CT detection, expand the nuclear and chemical detection capabilities, and make the detection rate of the system higher and the false alarm rate lower.
With higher passing rate and compact structure, the system is very suitable for high-precision inspection of passengers’ carry on luggage in civil aviation, customs and other important places.
Technical Parameters
Automatic Detection Function of Explosives / Drugs
By using dual energy CT imaging technology, the system can obtain the density and equivalent atomic number information of materials, and automatically detect a variety of explosives and drugs.
Intelligent Detection Function of Contraband
Combine dual DR image and CT image, use AI deep learning technology to realize the intelligent detection of knives, guns and other contraband.
HD color 3D image and CT slice image
HD 3D image that can rotate 360 degrees at any angle is displayed in different colors according to material properties, and 2D color CT slice can be displayed.

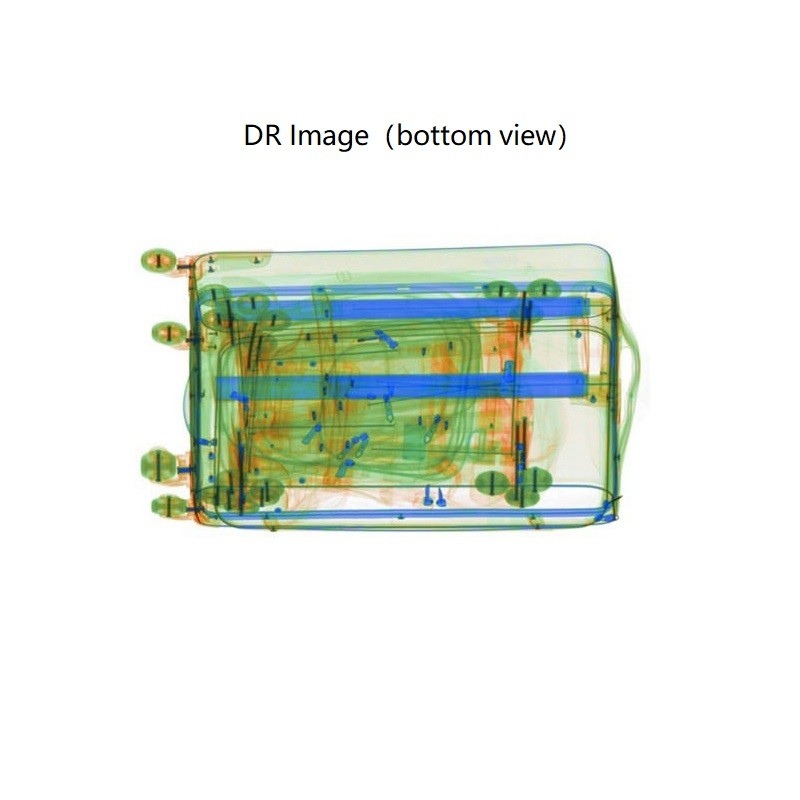

Independent DR Detection System
It can scan and generate high-definition dual view two-dimensional DR images, providing assistance for detection of contraband and interpretation of security inspectors.
Expand Nuclear and Chemical Detection Capability (Optional Function)
Integrated radiation detection, and other detection modules of hazardous chemistry , to achieve higher detection rate, lower false alarm rate.
Higher Passing Rate
The belt speed can reach 0.5m/s which is the highest belt speed in the industry of similar models.
Very Low Radiation Leakage Dose Rate
The leakage dose rate is close to the natural back- ground, which conforms to all international and domestic occupational health and safety standards.
Network Function
It can be used in stand-alone and network application, can realize remote operation and remote diagnosis, and can be integrated with the baggage handling system.
General Parameters
Overall Dimensions L4490mm*W2000mm*H2100mm
Channel size W1000mm*H600mm
Maximum detectable luggage size L2000mm*W1000mm*H600mm
Belt load 200kg (evenly distributed)
Operating temperature / relative humidity 0°C~40°C/5%~95% (no condensation)
Storage temperature / relative humidity -40°C~60°C/5%~95% (no condensation)
Power supply single phase power supply, 380VAC (-15%~+10%)
Power 15kVA
Performance Parameters
Conveyor speed 0.5m/s
DR wire resolution ≥36AWG
DR penetration ≥30mm steel plate
DR spatial resolution ≤1.6mm line pair
CT spatial resolution better than 2.5mm line pair
CT density resolution 3%
Monitor Three screens, 27 inch color display, maxi- mum resolution 1920 * 1080
Image Processing
DR image processing functions gray, anti color, edge enhancement, organic matter removal, inorganic matter removal,
high-energy penetration, super enhancement, gradual absorption, etc.
Slice image processing function gray, anti color, edge enhancement, organic matter removal, inorganic matter removal,
super enhancement, gradual absorption, eigenvalues (electron density and atomic number) statistics, etc.
3D image processing functions gray, anti color, edge enhancement, light enhancement, organic matter removal, inorganic matter removal,
3D marking, high-energy penetration, transparency gradient, density atomic number measurement, etc.
Selection and enlargement Arbitrary selection, 1~64 times magnification.
Storage capacity at least 100,000 images
Auxiliary functions Date / time display, power on self check, operation log, system working time, ray emission time, baggage count,
maintenance diagnosis, threat image projection (TIP), image storage and retrieval, etc.
X-Ray Source
Dr ray source tube voltage 180kV
CT source tube voltage 180kV
Radiation Safety
Radiation leakage dose rate less than 1uGy/h (5cm from the shell), close to the natural background, meeting all international and domestic
occupational health and safety standards.
