IXL-H-160

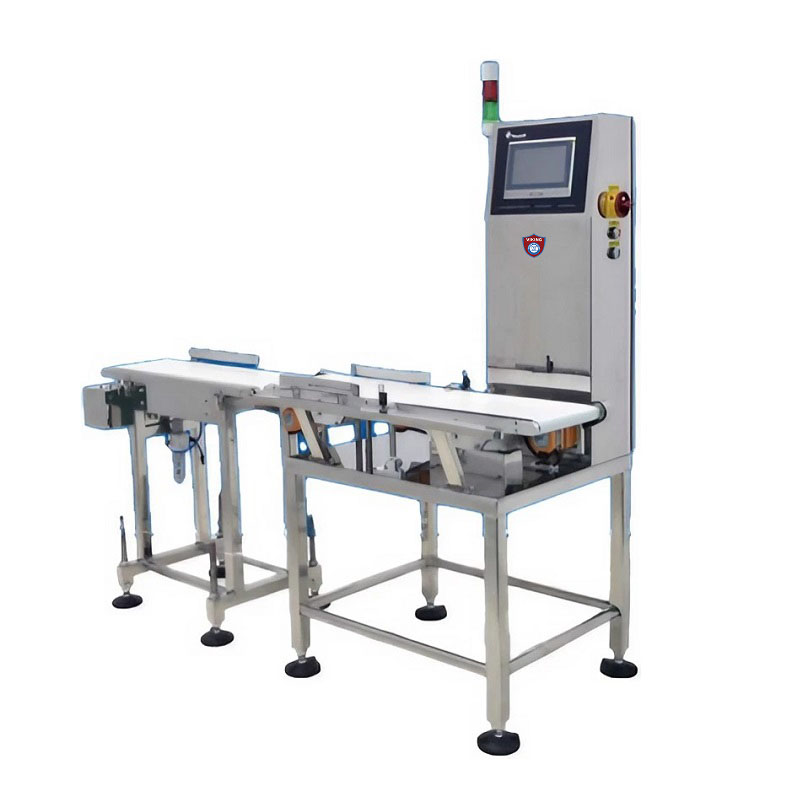

Checkweigher IXL Series
Suitable for weight checking for packaged products , to ensure quality standards
●High speed , high sensitivity, high stability dynamic weight checking
●Easy to clean , simple to disassemble
Product Features
User-friendly Function
●Multi languages
●Data storage
●Large memory capacity
High Configuration
●Touch screen
●USB Port,Ethernet function
●Real time monitoring on PC
Brief User Parameter Setting
High-speed Checkweigher
●High speed The Max speed can reach 90m/min
●It can ensure good accuracy with high speed
Product Specifications
Model | IXL-H-160 | XLH-230S | IXL H-230L | IXL H-300 | |
Detecting Range | 10 to 600g | 20 to 2000g | 20 to 2000g | 20 to 5000g | |
Accuracy (3o) | ±0.1g | ±0.2g | ±0.2g | ±0.5g | |
Max Speed | 400pcs/min | 300pcs/min | 250pcs/min | 200pcs/min | |
Belt Speed | 115m/min | ||||
Weighed Product Size | Width | 150mm | 220mm | 220mm | 290mm |
Length | 200mm | 250mm | 350mm | 400mm | |
Weigher Platform Size | Width | 160mm | 230mm | 230mm | 300mm |
Length | 280mm | 350mm | 450mm | 500mm | |
Operation Screen | 7" touch screen | ||||
Product Storage Quantity | 1 00 kinds | ||||
Segments Number | 3 | ||||
Rejecter Mode | Rejecter optional | ||||
Power Supply | 220V (optional) | ||||
IP Rate | IP54/IP66 | ||||
Body Material | Mirror polished/sand blasted | ||||
Note:
1.The technical parameter above namely is the result of accuracy by checking only the test sample on the belt, the accuracy would be affected according to the detecting
speed and product weight.
2. The detecting speed above will be affected according to the product size to be checked.
3. Requirements for different sizes by customers can be fulfilled
Product Configuration
