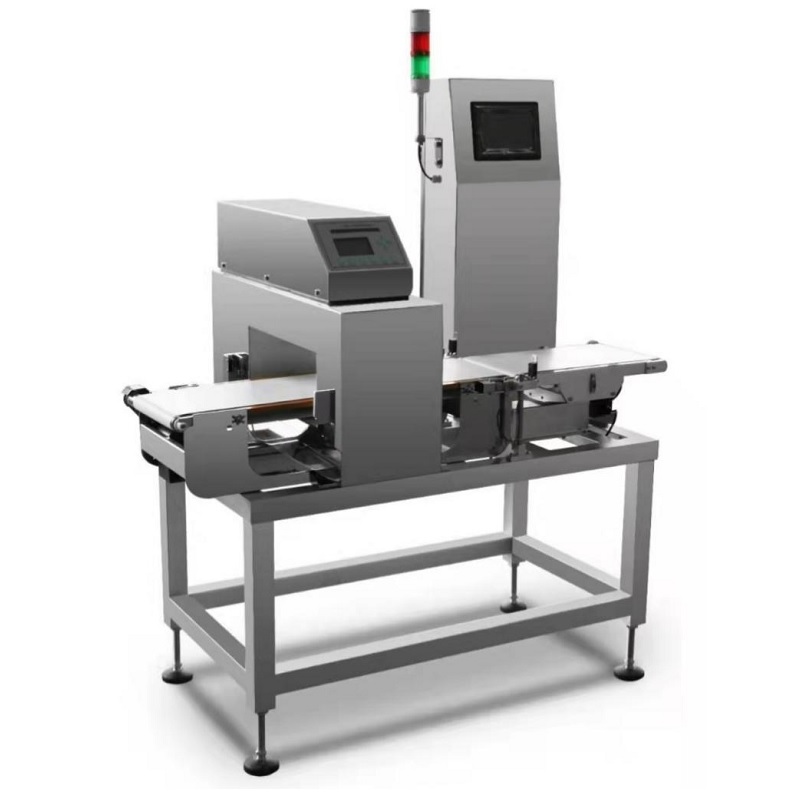

VKD-II Conveyor Belt dynamic checkweigher combined metal detector
Unlock Unmatched Efficiency with the Checkweigher and Metal Detector Combo:**
Step into the future of quality control with our innovative Checkweigher and Metal Detector Combo, a powerhouse of technological excellence. This integrated system combines high-speed digital signal processing components with intelligent algorithms to redefine precision and accuracy in your production line.
**Key Technological Features:**
1. **High-Speed Digital Signal Processing:**
- Benefit from cutting-edge digital signal processing that ensures swift and accurate measurements, optimizing your production efficiency.
2. **LCD Display with Multilingual Menu:**
- Navigate effortlessly through operations with the user-friendly LCD display, featuring a menu available in both Chinese and English for global accessibility.
3. **LED Signal Indicators:**
- Receive real-time feedback with LED signal indicators, providing visual cues for metal detection and weight verification results.
4. **Self-Learning Capabilities:**
- Harness the power of self-learning technology, allowing the system to automatically identify suitable phases and set sensitivity levels for optimal performance.
5. **Product Sequence Memory Storage:**
- Enjoy seamless operation with product sequence memory storage, accommodating up to 52 items for convenient access to your production parameters.
6. **Versatile Metal Detection:**
- Detect a wide range of foreign metallic objects, including iron, stainless steel, copper, aluminum, lead, and more, ensuring comprehensive security in your product line.
**Why Opt for the Checkweigher and Metal Detector Combo?**
1. **Enhanced Efficiency:**
- Experience heightened efficiency in your production process, thanks to the seamless integration of checkweighing and metal detection functionalities.
2. **User-Friendly Interface:**
- Simplify your operations with the user-friendly interface, allowing operators to navigate effortlessly and make real-time adjustments.
3. **Adaptable for Global Operations:**
- Ensure global accessibility with the multilingual menu, making this combo unit suitable for diverse production environments.
4. **Automatic Sensitivity Adjustment:**
- Enjoy the convenience of automatic sensitivity adjustment, as the system intelligently adapts to find suitable phases for optimal detection.
Upgrade your quality control measures with the Checkweigher and Metal Detector Combo, a technological marvel that sets a new standard for precision and efficiency in your production line. Elevate your production process and ensure the highest quality standards with this advanced integrated solution.
Checkweigher and Metal Detector Combo Product specifications
Item Name | Fully digital intelligent metal foreign object detector |
Model | VKD-II |
specifications | 230S-4H |
Material | Whole machine: Manufactured entirely in stainless steel 304 |
Detection sensitivity | Fe≥φ0.5mm Nofe≥1.0mm Sus304≥φ1.2mm |
Effective detection size | 230mmW*100mmH |
Weighing platform dimensions | 350mm L，230mm W |
Maximum sorting accuracy | ±0.2g |
Maximum load-bearing capacity | 2000g |
Conveyor belt height | 750mm(adjustable up to 100mm) (customizable based on site conditions) |
Conveyor belt speed | ≤70m/min |
Power supply | AC220V |
Rejecting mode | Double-swing arm rejection |
Conveying direction | From left to right or from right to left |
Alarm mode | Stop alarm or automatic rejection |
Note:
1. The sensitivity mentioned above is tested with the test block placed on the surface of the conveyor belt. Actual sensitivity may vary depending on the tested product.
2. Made entirely of stainless steel with a high level of dust and water resistance. Special specifications can be customized according to customer requirements at an additional cost.
3. The sensitivity of the product may vary slightly depending on the size and quantity of the packaged items being inspected.
4. For situations where the spacing between products is not fixed or when products are excessively long, it is recommended to adopt a stop-alarm rejection method.
