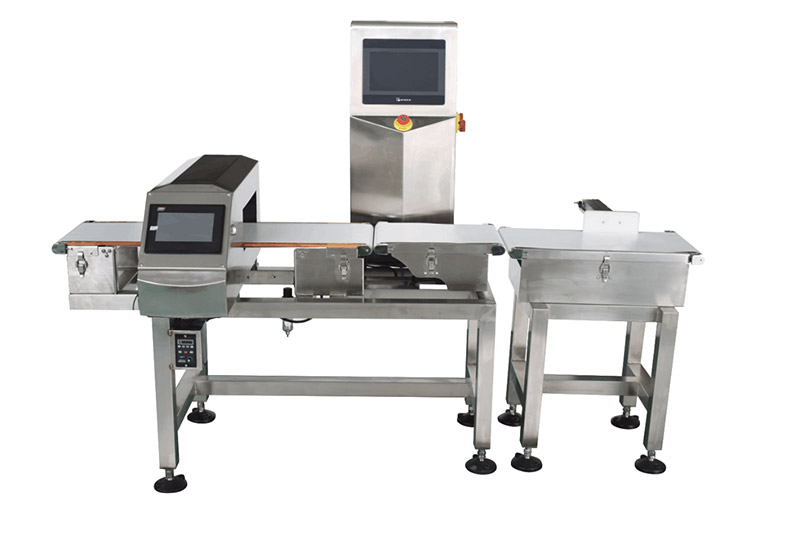

combination inline metal detector and checkweigher

Share:
Products Details

Highest Accuracy with Smallest Footprint

Space and cost savings are obtained with Vfinder''s integrated inspection solution, the combination checkweigher and metal detector system. In one system you can receive high accuracy weighing and metal detection.  Cut waste and improve safety compliance within a small footprint while minimizing false rejects.  Best performance in the food and pharmaceutical industries.


Product introduce

The system can separator metal scraps from potential products .

Metal detector and check weigher work integrated

The rejection system can accurate reject One machine have the metal impurity

The metal detector have high sensitivity and stability to avoid wrong alarm


Protection of consumers and brand reputation

Our advanced, proven multi-frequency systems guarantee reliable metal detection – even when processing difficult products - plus the precision-performing checkweigher also ensures full compliance with regulations and legal requirements. Your consumers can thus be sure of receiving contamination-free products.


Saving you space, time and money

VFINDER combination inspection solution is a compact system that fits perfectly into any production line. Only four feet are in contact with the ground, thereby guaranteeing improved floor accessibility for cleaning – a key quality feature in accordance with HACCP. The shared control console allows for product set-up parameters. Belt speeds and sorting equipment are automatically and jointly controlled, reducing manual workload by 50 per cent. The units comply with all necessary qualifications (DQ, IQ, OQ, PQ, MQ).


Metal detector general specification

Check weigher accuracy

Details of specification
Model NameVC-10VC-15VC-22VC-30VC-40VC-25(Two belt)VC-100
Weight range (g)3-1003-30010-120030-300050-100050g-25kg1kg-100kg
Mini weight accuracy (g)±0.1±0.3±0.5±1±0.5±5g±10g
Mini screen value (g)0.010.10.10.10.10.51g
Max weigh speed (Bags /Minute )203302101801805020
Belt speed016-11813-9613-9613-9613-783-15
(Meter/minute )
Suitable product length (mm) -60-180mm60-300mm60-420mm60-500mm60-420mm-
Suitable product width  (mm) -30-150mm30-200mm30-250mm30-400mm30-380mm-
Suitable product height (mm) -10-130mm10-200mm10-330mm10-330mm10-430mm-
Weigh zone size (mm L*W)-270*110450*220500*300500*400800*6001000*800
 NoteNon-standard (without belt)High accuracySmall common model  Customized modelCustomized modelCommon model for BoxRoller end belt
Reject device optionalPin Rod /Push rod /air blast /divided flow /drop down /flap drop (Optional )
Optional


Detected products Height8012080100120150200
Detected products Width300300400400400400400
Belt Width250250350350350350350
Belt length1500
 Detector sensitivityFeф0.5FeФ0.8FeФ0.6FeФ0.7FeФ0.8FeФ0.8FeФ1.0
SUSф1.0SUSФ1.5SUSФ1.0SUSФ1.2SUSФ1.5SUSФ2.0SUSФ2.3
N-Feф0.8N-FeФ1.0N-FeФ0.8N-FeФ1.0N-FeФ1.2N-FeФ1.5N-FeФ1.5
Speed of belt27M/min (can adjust 5-40 M/min)
Load ability20KG
Count100
Reject WaysSound and light alarm with belt stoped;(when has auto-reject system, belt continue and rejecting the goods )
ApplicationNon-package, plastic package, paper bag or box (non-metallic) product
Work EnvironmentTemperature -10℃-40℃, relative humility 30-90%
