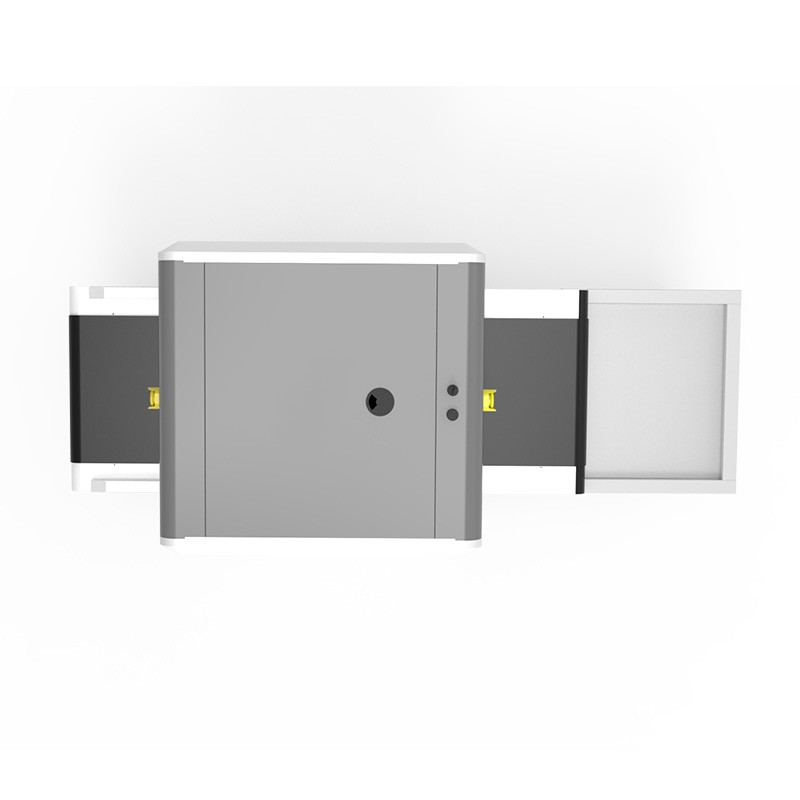

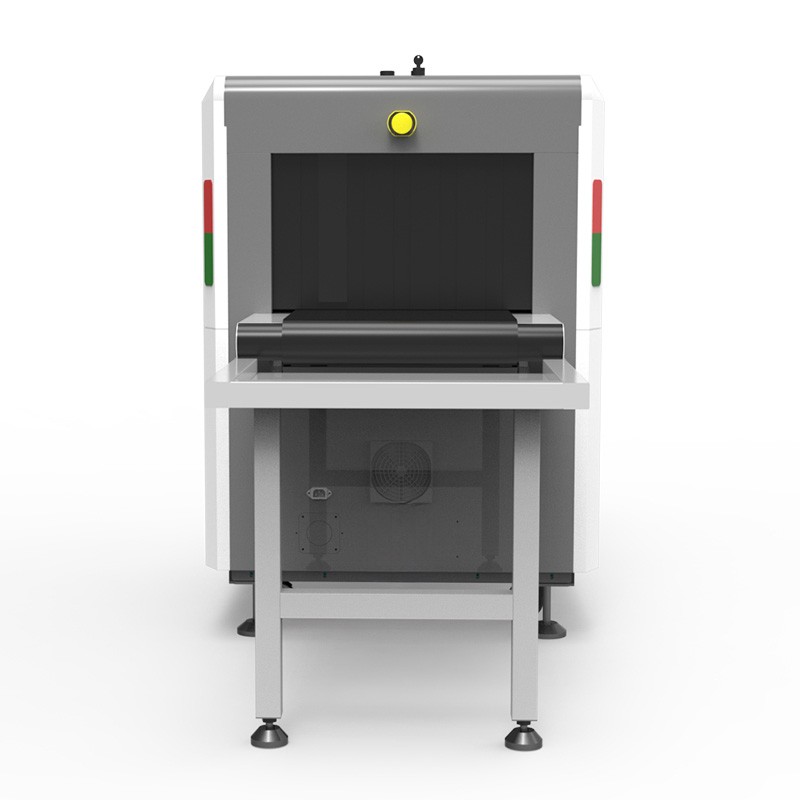

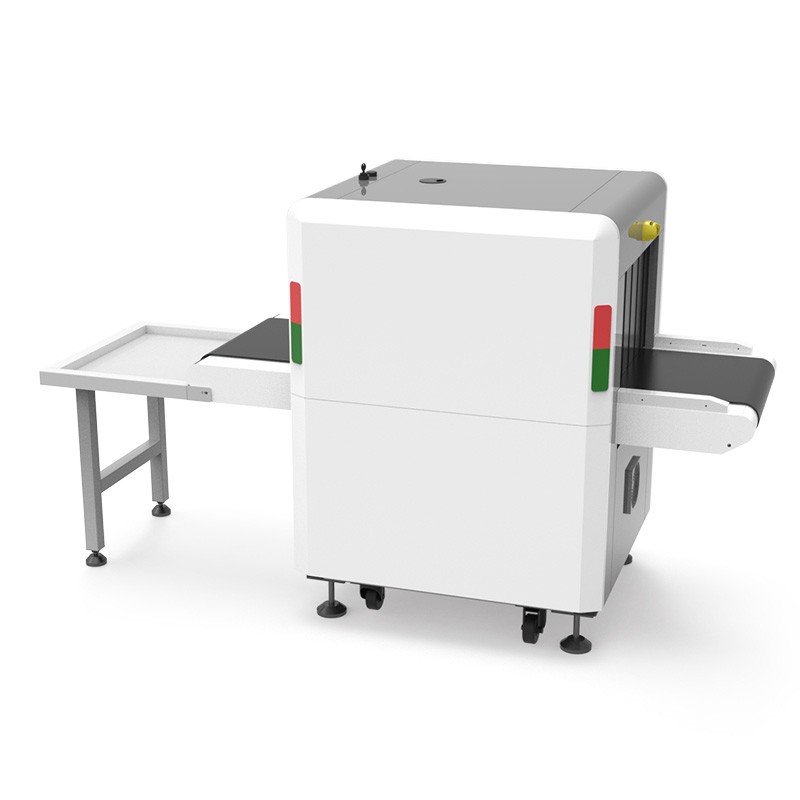

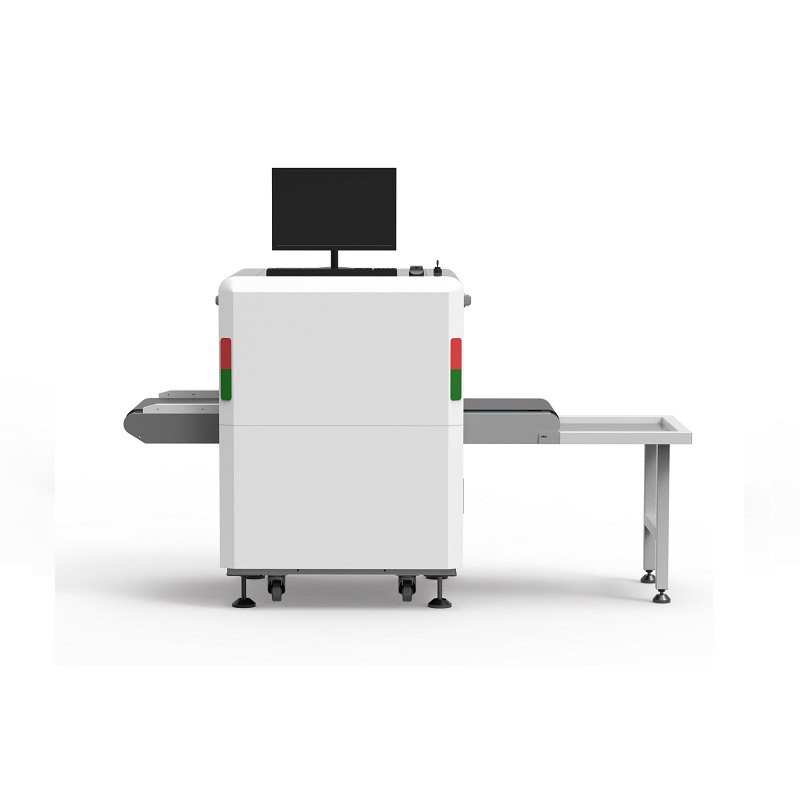

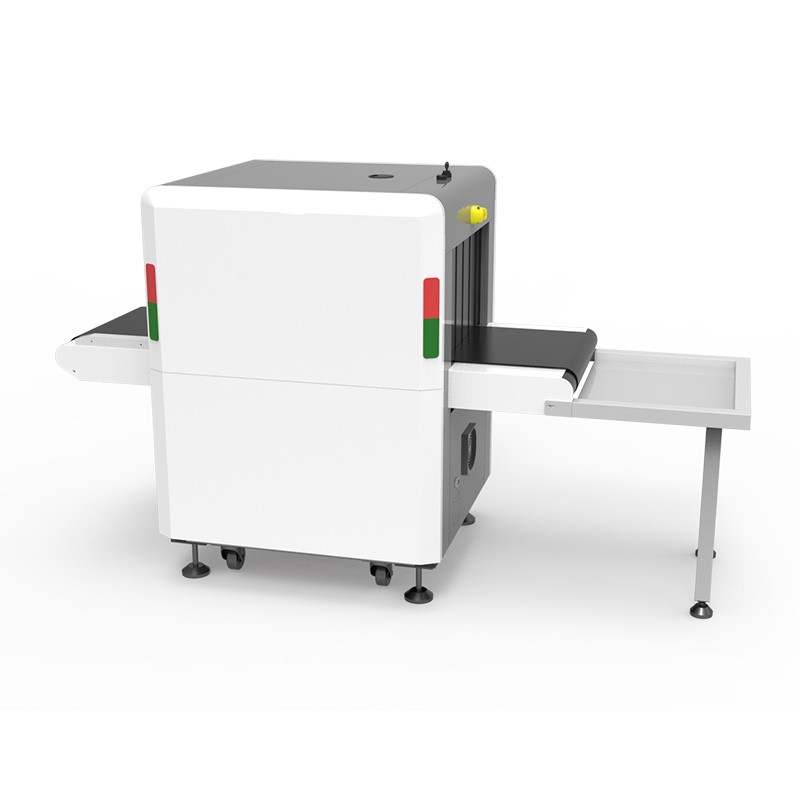

Small tunnel size high penetration x ray baggage scanning
Aiprort checkpoints security x ray baggage scanner
Our dual view high penetration x ray baggage scanner is used to screen passengers at airport security checkpoints and airports. The scanner works with a handheld wand that contains both a high-energy x-ray source and a beam of synchrotron light.
The scanner is able to detect concealed weapons and explosives, and it can also detect objects that may be used as weapons, including firearms, knives, and other cutting implements.
In addition to its ability to detect concealed weapons and explosives, this scanner also has the ability to detect hidden radio frequency identification tags (RFID), which are often used by terrorists.
Dual-view high penetration x ray baggage scanner
A dual-view high penetration x-ray baggage scanner is a machine that can scan your baggage and body. It's used to detect hidden objects within your luggage or body, such as weapons, drugs, or other contraband. This type of scanner is used in airports, train stations, and other transportation hubs, and for security checkpoints at events such as concerts and sporting events.
The dual view high penetration x ray baggage scanner has two cameras that rotate around the subject being scanned. One camera takes a picture from the front, while another takes a picture from behind. The pictures are then combined into one image so that both sides of the subject are visible to the operator.
The dual view high penetration x-ray baggage scanner uses high-energy X-rays to scan objects such as suitcases, backpacks, and briefcases with metal parts inside them without harming anyone who comes into contact with them during scanning.
X-ray baggage scanner Advantages
1. quick fast for threat dangerous detection
2. Easy shortcut menu for operation
3. Radition-free lead curtain makes sure Oppucation healthy
4. Sound and light alarm
5. Local network supported
6. Optional TIP Ai detection function
X-ray baggage scanner Features
● Original Hamamatsu detectors, image quality, Omron electrical components. Enhance the overall quality
● Global leading parameters: the inspection report issued by the Ministry of Public Security, shows that each parameter is ahead of other products, more details in the inspection report.
● Energy-saving design: The machine can sense objects automatically,if there is luggage on the machine will be operating, if there is no luggage, it'll be quiet. (Optional)
● A key shutdown control: simply rotate the key when clicking shutdown, safe shutdown automatically, and reduce equipment failure.
● Environmental-friendly Design: lead shade with protective film, prevent lead from hand contact, avoid lead pollution.
● Dynamic screen switching: when it is stationary screen it can be switched and when it is dynamic it also can switch freely.
X-ray baggage scanner Product Certification
● Strict quality internal control, double-check principles of engineering and production
● Safeguard measures for machine parts
● Through the testing by the Ministry of Public Security and police use of electronic product quality testing center
● Through the EU CE certification
● Through the ISO9001 quality management system certification
● Through the ISO14001 environmental management system certification
● Through the GB/T28001 occupation health and safety management system certification
● Through the provincial Environmental Protection Department of radiation safety certification
● Through the provincial occupation health inspection center detection of radiation
● Through the people's Republic of China State Bureau of copyright of computer software copyright registration certificate
● Double soft certification
Applications
Customs, port, prosecutors, prisons, railway stations, courts and other security units.
prohibited and dangerous items inspection x ray baggage scanner
A dual-view high-penetration X-ray baggage scanner is used to detect prohibited and/or dangerous items within the body of a passenger. This type of scanner is used during airport security checkpoints, security officers may use this machine to scan passengers' bodies, looking for anything that could be harmful or illegal.
The technology behind this type of scanner is very simple: it uses two different views to compare what it sees on one side with what it sees on the other side. For example, if one side of your body has a firearm in it, while another side does not have one in it, that would make sense to the machine. The machine uses two images taken from different angles and then compares them to see if there's any discrepancy between them—if there is, then that's how you know you're being scanned!
That's all there is to it! These types of scanners are often used by airports for their own safety as well as other passengers. They're designed so that no one can get through without being checked by these machines first!
X-ray Generator | |
Ray Beam direction | Bottom-illuminated |
Tube current | 0.4~0.5mA(adjustable) |
Tube voltage | 100-160 kV(adjustable) |
Ray beam divergence angle | 60° |
The cooling / work cycle | Sealed oil cooling / 100% |
Image Processing System | |
X-ray sensor | L-shaped photodiode array detector (C), 24bit depth |
Monitor | high resolution 19-inch LCD Samsung monitor |
Color image display | 24-bit true color display |
Edge Enhancement | the outline of objects will be more clear |
Super Image Enhancement | the details of the image are more clear |
High penetration display | improve image contrast in bright areas, so the easy penetrating area will be more clear |
Low penetration display | improve image contrast in dark areas, so the difficult penetrating area will be more clear |
Magnifier | local amplification function |
Brighten / darken | Increase/ decrease image brightness |
Image pull back / front pull | Show the top 20 images, and the current image can be any image processing |
Image Restoration | Restored to its original state |
Image Storage | Real-time save any image, any image can be processed arbitrarily,continuous work to save |
Environmental conditions | |
Operating temperature/humidity | 0℃~45℃/20%~95% (No condensation) |
Storage temperature/humidity | -20℃~60℃/20%~95% (No condensation) |
Operating Voltage | 220VAC(±10%) 50±3Hz |
Power consumption | 1.0KW(maximum) |
Noise level | <55dB (A) |
Technical Standards | Technical Parameters |
The channel size | 500(W)×300(H)mm |
Conveyor speed | 0.22m/s |
Load | 20 kg |
Resolution | ∮0.0787 mm |
Penetration | ≥40 mm steel plate |
Monitor | Samsung 19in LCD Monitor |
Storage | 500G hard drive to save any image in real-time, can store more than 100,000, and can make any image processing, and continuous work to save. |
Noise | < 55dB(A) |
Operating system | WindowsXP |
Film Safety | Safety to the ISO1600 |
Leaking radiation dose rate | Away from any device's outer surface of 5cm, the ray irradiation leak rate should be < 0.05µGy/H |
Dimensions | (L) 1750mm (W)750mm(H)1300mm |
NW / GW | 290 kg / 360 kg |
