Ultra-Thin Portable X-ray Scanner
**Revolutionize Security with the Ultra-Thin Portable X-ray Inspection Device**
Introducing a groundbreaking solution to security challenges—the ultra-thin portable X-ray inspection device. This state-of-the-art system redefines expectations with its slim profile, lightweight construction, and high-definition X-ray imaging capabilities. Designed with efficiency in mind, it employs a modular structure that includes a light source, a receiving screen, a data processing terminal, and more. This modular design ensures rapid on-site setup, allowing for quick and straightforward use in any security scenario.
**Key Features:**
1. **Ultra-Thin and Lightweight:**
- The device boasts an ultra-thin profile and lightweight construction, offering unparalleled portability without compromising on performance.
2. **High-Definition X-ray Imaging:**
- Experience clarity and precision with high-definition X-ray imaging, providing detailed insights into scanned objects for enhanced security screening.
3. **Modular Design for Easy Setup:**
- The modular structure, encompassing a light source, receiving screen, data processing terminal, and more, facilitates quick and effortless on-site setup. This design ensures rapid deployment, making it an ideal solution for dynamic security environments.
4. **Versatile Applications:**
- With its adaptability and versatility, the ultra-thin portable X-ray inspection device is suitable for a range of applications, from security checkpoints to event venues, enabling effective and swift security measures.
5. **Efficient Data Processing:**
- The device is equipped with advanced data processing capabilities, ensuring efficient analysis and interpretation of X-ray images in real-time.
6. **User-Friendly Operation:**
- Designed for ease of use, the device enables operators to navigate seamlessly through the inspection process, making it a practical choice for security personnel.
Embrace the future of security screening with the Ultra-Thin Portable X-ray Inspection Device—a technological marvel that combines innovation, portability, and efficiency to meet the demands of modern security challenges.
Technical Specifications of the Receiving Screen
1. Material: Amorphous silicon.
2. Imaging Size: 430mm x 350mm.
3. Dimensions: 460mm x 460mm x 15mm.
4. Spatial Resolution: 4 lines per millimeter (lp/mm), capable of distinguishing 0.03mm fine wires.
5. 5. Image Resolution: 2560 x 3072.
6. Thickness: 15mm.
7. Weight: 3.5kg.
8. Blind Spot: Not greater than 18mm both above and below.
9. Image Dynamic Range: 16 bits, 65536 grayscale levels.
10. Wired Communication: Compatible with 100 Mbps and 1 Gbps Ethernet (GbitE).
11. Wireless Communication: Two options available - 2.4GHz and 5.8GHz.
12. Operating/Storage Temperature/Humidity: Temperature: 55±2°C / -15±3°C to 55°C / 15 hours; Humidity: 93±3% (non-condensing) continuous operation for 48 hours.
X-ray Source Technical Parameters
X-ray Machine Technical Parameters: (Compatible with optional X-ray sources such as XRS-3, xr200, CP120, etc.)
1. Weight: 2.3kg.
2. Output Voltage: Continuously adjustable from 0 to 85KV,with continuous constant current.
3. X-ray Penetration Capability: 120mm aluminumplate (20mm steel plate).
4. Dual-purpose charging and triggering interface, effectively reducingthe number of cable connections.
5. Stainless steel plated dust and waterproof button with connection indicator.
6. Anti-misoperation handle design (adjustment knob is directly below the handle, and all switch and button interfaces are within the protective range of the handle).
7. Power Source: Battery, dual-use for both AC and DC.
Software and Data Processing Terminal Parameters
1. Computer Display: 14 inches or larger, with Windows 7 or higher operating system.
2. 8GB or more of RAM and 512GB or more of solid-state drive.
3. Utilizes a bilingual (Chinese and English) user interface with touch control capability.
4. Full-screen touch operation allows adjustment of image processing, including zooming, shrinking, grayscale, and brightness, through finger gestures.
5. Equipped with basic functions including image capture, image storage, image measurements, pseudo-color, and more.
6. Features automatic processing capabilities, which can automatically process captured images to achieve the best results and present them within the software.

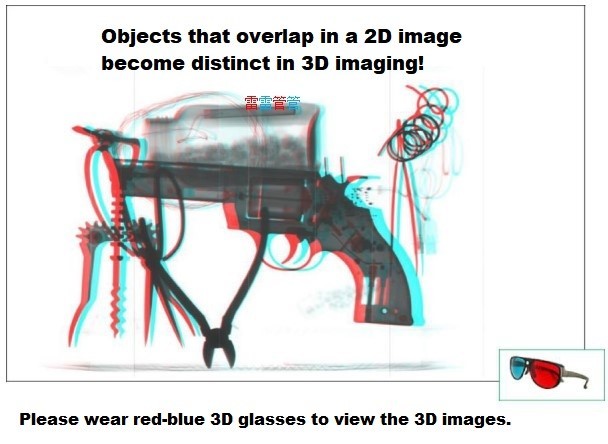

7. Equipped with automatic/manual stitching functionality, capable of stitching not less than 9 images, and includes 3D capabilities.
8. Image processing functions include edge enhancement, negative imaging, pseudo-color, stitching, labeling, zooming, rotating, mirroring, embossing, dimension measurements, and the ability to search files under different conditions.
Application Scope and Scenarios
Ø In security, explosive disposal, and surveillance scenarios, the device is used for the real-time perspective observation of suspicious items to eliminate harmful or dangerous materials (explosives, explosive timing devices, firearms, and controlled devices). This enhances work efficiency and reduces the risk to personnel.
Ø In secure and confidential facilities, the device is employed for searching various types of eavesdropping and surveillance devices, among other security purposes.
Ø Used for security inspections in drug control, technical investigation, customs, and other law enforcement and security purposes.
Real Images
