Large size x ray cargo scanner

We offer the best security cargo X-ray machines for cargo scanning!

We are a trusted provider of used cargo x-ray scanners, pallet scanners, and screening machines that are designed to meet the most stringent security requirements in the industry. Our team of experienced professionals is ready to help you find a solution for your cargo scanning needs.

Our company offers high-quality used cargo x-ray scanners, pallet scanners, and screening machines that are designed to meet the most stringent security requirements in the industry. Our team of experienced professionals is ready to help you find a solution for your cargo scanning needs.

Our company offers high-quality used cargo x-ray scanners, pallet scanners, and screening machines that are designed to meet the most stringent security requirements in the industry. Our team of experienced professionals is ready to help you find a solution for your cargo scanning needs

We are a global supplier of cargo X-ray machines, used cargo X-ray scanners, pallet scanners and screening machines. We provide our customers with the best security cargo x-ray machines for scanning your goods. We offer our products at very competitive prices, so you can choose from a range of options without having to worry about breaking the bank. Our range of products includes:

Cargo X-Ray Machine -

We stock a range of cargo X-ray machines that are suitable for various applications. These can be used to scan goods such as luggage, cars and shipping containers. Our machines are designed to meet international standards for airport security and can be easily transported around the world if necessary.

Used Cargo X-Ray Scanner

 - If you need a second-hand scanner then we have an extensive selection available online today! All of these scanners have been thoroughly tested before being listed so that you know what you're getting before making any purchases! They will also come with a 12-month warranty against any defects or faults arising from normal use during this period too!

Pallet Scanner

 - We also stock pallet scanners which are great for checking items like bags or parcels when they've been loaded onto pallets by hand rather than by machine automatically like they would

 X-ray cargo scanner  machine with Professional Keyboard:

● With Emergency button for x-ray cargo scanner running

● Radiation display x-ray cargo scanner

● Three programmable key x-ray cargo scanner

● Touchpad for friendly operation for X-ray scanner

● Protection: IP43

X-ray Cargo Scanner machine Dimension

Operation Console Dimension

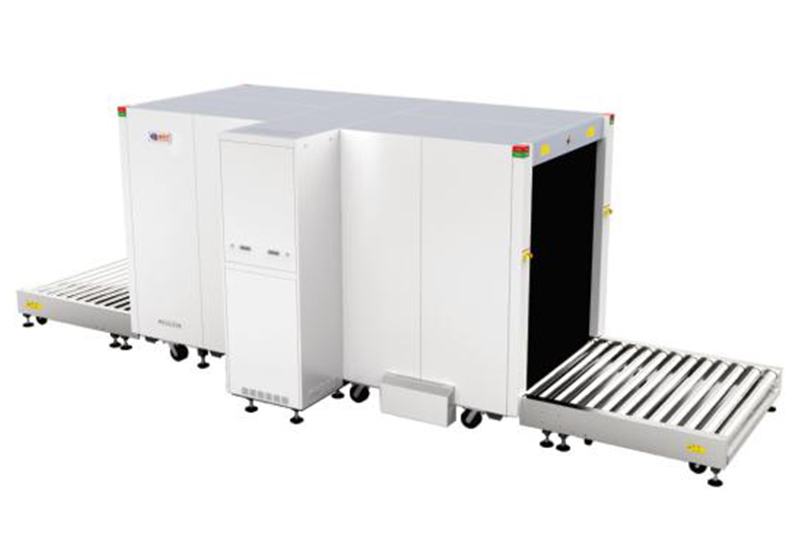

Introduce of  cargo X-ray machines for security scanning

VX150180 is a multi-energy x-ray security inspection system for cargo scanning. It’s powerful to deal with big-size luggage at 150cm width, and 180cm height. It provides high-resolution and ultra-clear images for easy object identification with the latest technology of computer control and image processing.

VX150180 can distinguish organic and inorganic materials by the atomic composition of the material.  VX150180 can distinguish explosives/drugs and realize the Threat Image Project Function by adding different options. The operator can easily identify materials with the following coloring scheme:

Organic material--orange

Inorganic material--blue

Mixed material--green

High-density material--black

General Specification:

Tunnel Size: 1500mm*1800mm

Conveyor Speed: 0.22m/s

Conveyor height: 350mm

Conveyor Max Load:2000kg

X-ray Dose per inspection <2.8μSv

Wire Resolution:38AWG Guarantee, 40 AWG typical

Spatial resolution Level: dia1.3mm,Vertical: dia1.3mm

Penetration: 32 mm steel guarantee,34mm steel typical

Penetration Resolution :32AWG guarantee, 34AWG typical

Film Safety : Guarantee ASA/ISO1600 Film

X-ray Leakage: <0.1μSv/h (at a distance of 5cm From external housing)

Conveyor running direction: bi-direction

Throughput: Typically 720 bags per hour

Operation console: Two monitors 17inch

Mechanical construction: steel construction with steel panels, mounted on roller castors

Standard color: White

Extension roller for entrance and exit: 1.5m(optional)

◆ Image System:

Technical Principle: Dual-energy X-ray Imaging;

X-ray Sensor: L-Shaped Photodiode Array (multi-energetic)

Monitor: High-Resolution Color, LCD Accord, 17inch

Image Display: High resolution of 1024 * 1280 pixels; Image Grey Level: 65536

Image Enhancement: 1-64times enlargement continuity, Color/BW, negative, high/low

penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.

Image Recall: All preceding images are recallable, and retrieved.

Help detect Explosives & Narcotics: Explosives & narcotics alarm and highlight according to atomic number7.8.9 signature

High-Density Region Alarm: Impenetrable region alarm and highlight, for possible concealing of threats and contrabands

Threat Image Projection: Inserting fictional, but realistic images of threat items into baggage during screening operations, for maintenance of vigilance, as well as training and assessment of image identification capability

Image Archive: Up to 50,000 images are stored automatically, enabling transferring to USB disk, and converting to XF、PNG、BMP、JPEG、TIFF、GIF formats

Miscellaneous Functions: Time/date display, counters, user management, system-on/X-ray-on timers, power on self-test, built-in diagnostic facilities, dual-direction scanning, system log, system standby, etc.

Network Applications: Multiple remote applications available based on Ethernet LAN and Windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .

Images process: 24bit real-time processing ,4colors analysis, Images displayed marked date and ID NO , Count the number of bags,Memory gray level:65536

◆ Operating Environment:

Operation temperature/Humidity: 0℃ to +40℃/10%-95%(non-condensing)

Storage Temperature/Humidity: -20℃to 60℃/ 5%-95%(non-condensing)

Operation Power: 220VAC(+10%～-15%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)

Power Consumption: 2.0KW (max)

Noise: <58db

Dimensions (L×W×H) :2127mm*2230mm *2338mm

Weight: 3500kgs

◆ Computer Character:

CASE: IPC7132

Power: 250W/ATX

Main board: AIMB 501G2

CPU: G1610 2.6G

Storage: 2GB 1600MHz DDR3 Innodisk

Hard Disk: SEAGATE 500G 3.5”

◆ X-ray Generator:

Anode Voltage: 160kv adjustment

Anode power:  1.2mA adjustment

Generate angle: 80 degrees downward

Brand: SPELLMAN

Generate direct: from top to bottom

Cooling / Duty Cycle: Oil Cooling /100%

◆ Other Characters:

Detect PCB board: UK brand Sensortech

Extension Rollers: customize size length

Support card reader operator access

CD DVR/RW unit: Optional

Computer system: XP system

Monitor: 17 inch DELL two monitors
